ansys 同時顯示多階模態

2017-01-16  by:CAE仿真在線  來源:互聯網

!在前期已有計算結果的基礎上,輸入以下代碼,可實現4個子窗口,同時顯示不同階模態振型圖;并輸出到硬盤。以下實現1-7階模態顯示,輸出為2個圖片文件分別為modal_1-3.bmp和modal_4-7.bmp,同理可自行擴展代碼實現更多階模態輸出。

!__________________________________________________________

!調節ANSYS背景為白色
/RGB,INDEX,100,100,100, 0
/RGB,INDEX, 80, 80, 80,13
/RGB,INDEX, 60, 60, 60,14
/RGB,INDEX, 0, 0, 0,15
/REPLOT

/post1
!設置窗口1:位于左上角
/WINDOW,1,LTOP

/REPLOT

!設置窗口2:位于右上角
/WINDOW,2,RTOP,,,,1

/REPLOT

!設置窗口3:位于左下角
/WINDOW,3,LBOT,,,,1

/REPLOT

!設置窗口4:位于右下角
/WINDOW,4,RBOT,,,,1

/REPLOT

/erase !重顯示時從屏幕上刪除原來的顯示內容,為默認值
/win,1,on
/win,2,off
/win,3,off
/win,4,off

/PLOPTS,INFO,3
/PLOPTS,LEG1,1
/PLOPTS,LEG2,0
/PLOPTS,LEG3,0
/PLOPTS,FRAME,1
/PLOPTS,TITLE,0
/PLOPTS,MINM,0
/PLOPTS,FILE,0
/PLOPTS,LOGO,0
/PLOPTS,WINS,0
/PLOPTS,WP,0
/PLOPTS,DATE,2
/TRIAD,LBOT

EPLOT !顯示模型單元


/noerase !重顯示時保留屏幕上原來的顯示內容
/win,1,off
/win,2,on
/win,3,off
/win,4,off

/PLOPTS,INFO,3
/PLOPTS,LEG1,1
/PLOPTS,LEG2,0
/PLOPTS,LEG3,0
/PLOPTS,FRAME,1
/PLOPTS,TITLE,0
/PLOPTS,MINM,0
/PLOPTS,FILE,0
/PLOPTS,LOGO,0
/PLOPTS,WINS,0
/PLOPTS,WP,0
/PLOPTS,DATE,2
/TRIAD,LBOT

SET,,, ,,, ,1 !讀取第1階模態
PLNSOL, U,SUM, 0,1.0 !顯示第1階模態振型

/noerase
/win,1,off
/win,2,off
/win,3,on
/win,4,off

/PLOPTS,INFO,3
/PLOPTS,LEG1,1
/PLOPTS,LEG2,0
/PLOPTS,LEG3,0
/PLOPTS,FRAME,1
/PLOPTS,TITLE,0
/PLOPTS,MINM,0
/PLOPTS,FILE,0
/PLOPTS,LOGO,0
/PLOPTS,WINS,0
/PLOPTS,WP,0
/PLOPTS,DATE,2
/TRIAD,LBOT

SET,,, ,,, ,2 !讀取第2階模態
PLNSOL, U,SUM, 0,1.0 !顯示第2階模態振型

/noerase
/win,1,off
/win,2,off
/win,3,off
/win,4,on

/PLOPTS,INFO,3
/PLOPTS,LEG1,1
/PLOPTS,LEG2,0
/PLOPTS,LEG3,0
/PLOPTS,FRAME,1
/PLOPTS,TITLE,0
/PLOPTS,MINM,0
/PLOPTS,FILE,0
/PLOPTS,LOGO,0
/PLOPTS,WINS,0
/PLOPTS,WP,0
/PLOPTS,DATE,2
/TRIAD,LBOT

SET,,, ,,, ,3 !讀取第3階模態
PLNSOL, U,SUM, 0,1.0 !顯示第3階模態振型

!輸出圖片為
/image,save,'model3-modal_1-3.bmp'

!------第二幅圖片------
/erase !重顯示時從屏幕上刪除原來的顯示內容,為默認值
/win,1,on
/win,2,off
/win,3,off
/win,4,off

/PLOPTS,INFO,3
/PLOPTS,LEG1,1
/PLOPTS,LEG2,0
/PLOPTS,LEG3,0
/PLOPTS,FRAME,1
/PLOPTS,TITLE,0
/PLOPTS,MINM,0
/PLOPTS,FILE,0
/PLOPTS,LOGO,0
/PLOPTS,WINS,0
/PLOPTS,WP,0
/PLOPTS,DATE,2
/TRIAD,LBOT

SET,,, ,,, ,4 !讀取第4階模態
PLNSOL, U,SUM, 0,1.0 !顯示第4階模態振型

/noerase !重顯示時保留屏幕上原來的顯示內容
/win,1,off
/win,2,on
/win,3,off
/win,4,off

/PLOPTS,INFO,3
/PLOPTS,LEG1,1
/PLOPTS,LEG2,0
/PLOPTS,LEG3,0
/PLOPTS,FRAME,1
/PLOPTS,TITLE,0
/PLOPTS,MINM,0
/PLOPTS,FILE,0
/PLOPTS,LOGO,0
/PLOPTS,WINS,0
/PLOPTS,WP,0
/PLOPTS,DATE,2
/TRIAD,LBOT

SET,,, ,,, ,5 !讀取第5階模態
PLNSOL, U,SUM, 0,1.0 !顯示第5階模態振型

/noerase
/win,1,off
/win,2,off
/win,3,on
/win,4,off

/PLOPTS,INFO,3
/PLOPTS,LEG1,1
/PLOPTS,LEG2,0
/PLOPTS,LEG3,0
/PLOPTS,FRAME,1
/PLOPTS,TITLE,0
/PLOPTS,MINM,0
/PLOPTS,FILE,0
/PLOPTS,LOGO,0
/PLOPTS,WINS,0
/PLOPTS,WP,0
/PLOPTS,DATE,2
/TRIAD,LBOT

SET,,, ,,, ,6 !讀取第6階模態
PLNSOL, U,SUM, 0,1.0 !顯示第6階模態振型

/noerase
/win,1,off
/win,2,off
/win,3,off
/win,4,on

/PLOPTS,INFO,3
/PLOPTS,LEG1,1
/PLOPTS,LEG2,0
/PLOPTS,LEG3,0
/PLOPTS,FRAME,1
/PLOPTS,TITLE,0
/PLOPTS,MINM,0
/PLOPTS,FILE,0
/PLOPTS,LOGO,0
/PLOPTS,WINS,0
/PLOPTS,WP,0
/PLOPTS,DATE,2
/TRIAD,LBOT

SET,,, ,,, ,7 !讀取第7階模態
PLNSOL, U,SUM, 0,1.0 !顯示第7階模態振型

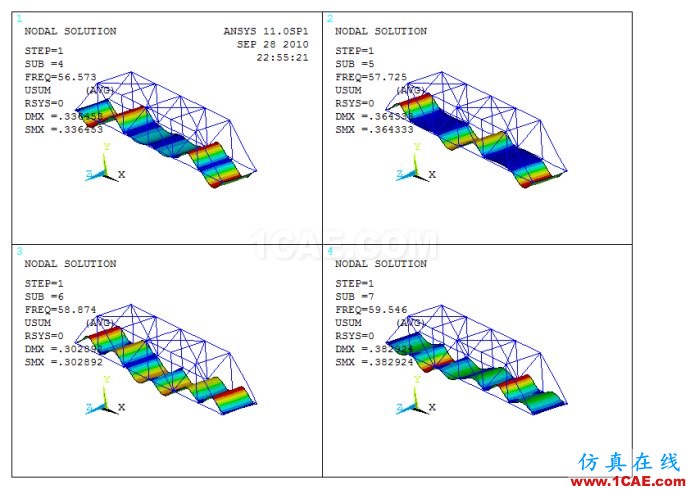

/image,save,'model3-modal_4-7.bmp'

!恢復為當前窗口樣式
/win,all,on
/erase
/PLOPTS, DEFA

!調節ANSYS背景為黑色
/RGB,INDEX, 0, 0, 0, 0
/RGB,INDEX, 60, 60, 60,13
/RGB,INDEX, 80, 80, 80,14
/RGB,INDEX,100,100,100,15
/REPLOT

/WIND,ALL,OFF
/WIND,1,FULL
EPLOT
