APDL實現ANSYS的結果或中間變量值打印輸出到txt文件

2017-05-26 by:CAE仿真在線來源:互聯網

APDLAPDL實現ANSYS的結果或中間變量值打印輸出到文件

總結重點如下:

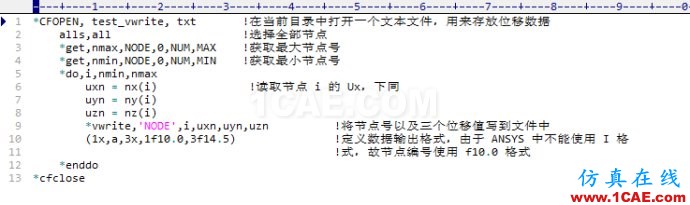

1、apdl運行過程中的數據(包括節點,位置,函數返回值,變量等)通過vwrite輸出到txt文件

2、使用命令相關命令:vwrite,mwrite,cfopen,cfclos,/output等

output本來是寫standard output的,即那個黑窗口,但也可以通過這個命令改為寫到文件,vwrite就是把變量數組寫到output

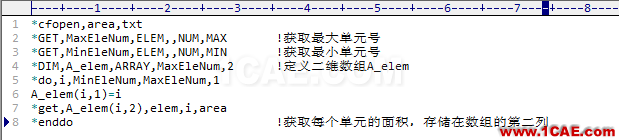

如果不想與標準輸出窗口那些內容相互混合,你可以通過cfopen,cfclos來建立獨立的文件,然后通過vwrite寫入

*VWRITE, Par1, Par2, Par3, Par4, Par5, Par6, Par7, Par8, Par9, Par10, Par11, Par12, Par13, Par14, Par15, Par16, Par17, Par18, Par19
Writes data to a file in a formatted sequence.
APDL: Array Parameters
MP ME ST PR PRN <> EM DY PP EME MFS
Argument Descriptions
Par1, Par2, Par3, . . . , Par19
You can write up to 19 parameters (or constants) at a time. Any Par values after a blank Par value are ignored. If you leave them all blank, one line will be written (to write a title or a blank line). If you input the keyword SEQU, a sequence of numbers (starting from 1) will be written for that item.

Notes
You use *VWRITE to write data to a file in a formatted sequence. Data items (Par1, Par2, etc.) may be array parameters, scalar parameters, character parameters (scalar or array), or constants. You must evaluate expressions and functions in the data item fields before using the *VWRITE command, since initially they will be evaluated to a constant and remain constant throughout the operation. Unless a file is defined with the *CFOPEN command, data is written to the standard output file. Data written to the standard output file may be diverted to a different file by first switching the current output file with the /OUTPUT command. You can also use the *MWRITE command to write data to a specified file. Both commands contain format descriptors on the line immediately following the command. The format descriptors can be in either Fortran or C format.

/OUTPUT, Fname, Ext, --, Loc
Redirects text output to a file or to the screen.

1 概述

ANSYS作為通用有限元仿真計算軟件應用非常普遍,其強大的參數化功能更是使得ANSYS的使用方便很多。在計算過程中,通常需要對計算結果進行統計,ANSYS計算的模型大多時候節點單元數目很多,結果數據也很多,因此在GUI界面的查詢操作不太方便,工作量太大,而且結果不好記錄。而且很多時候需要借助第三方軟件比如MATLAB等數據處理軟件對結果進行處理,此情況下需要ANSYS能夠將計算結果輸出到文件中,再通過對結果文件進行處理得到想要的結果。

APDL不僅在參數化建模、加載和求解有很大的發揮,在后處理時同樣有發揮。本次借助APDL編寫后處理命令流,將需要的計算結果以設置好的格式輸出為txt文件。

2 應用

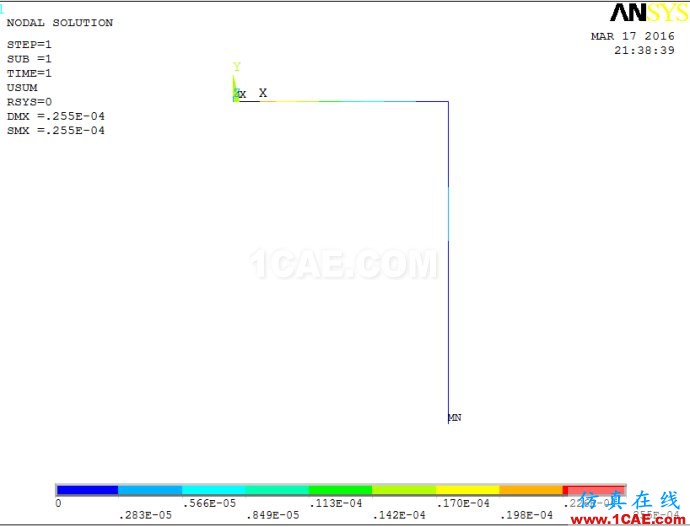

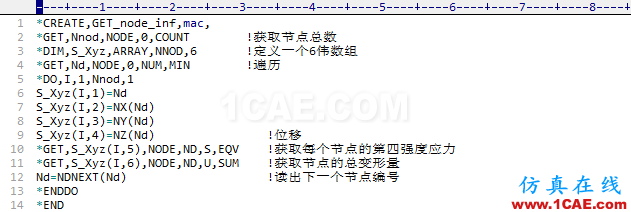

將編寫好的前處理和求解APDL命令流在ANSYS里面運行,命令流文件如圖1所示,該段命令流為兩根梁的求解計算,如圖2所示。

APDL實現ANSYS的結果輸出
